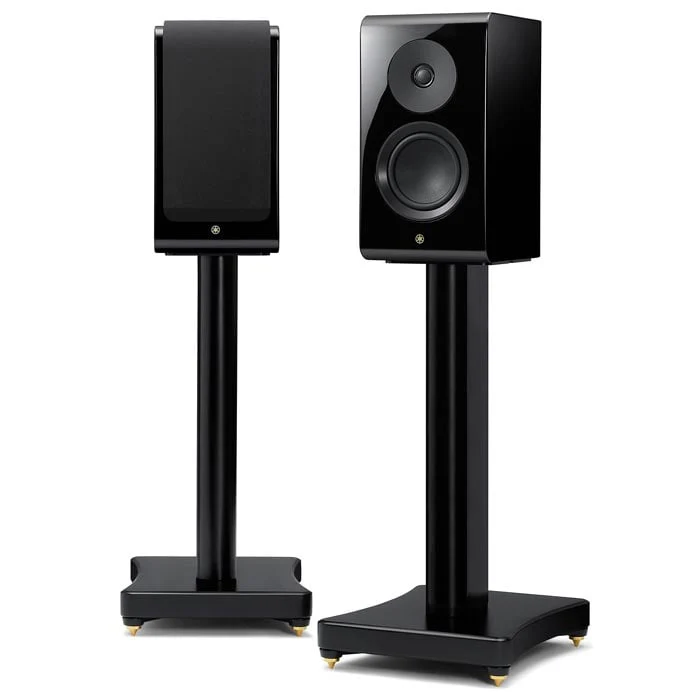

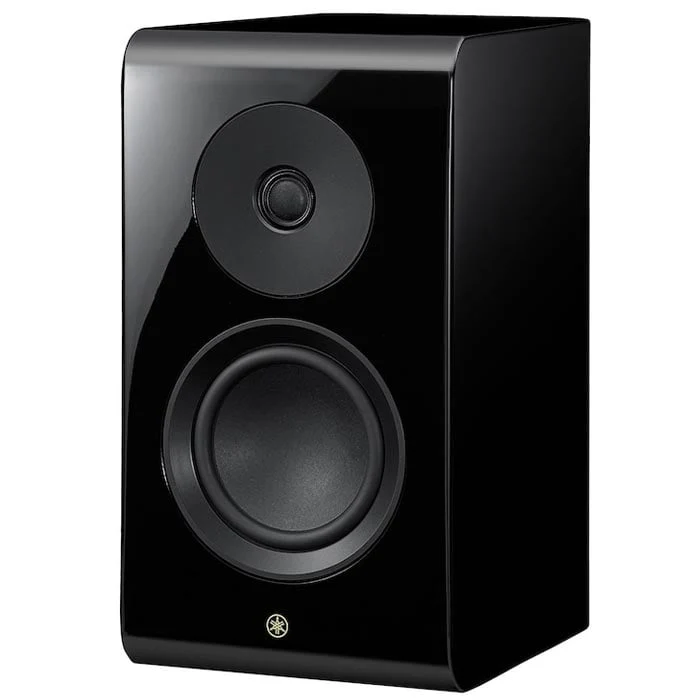

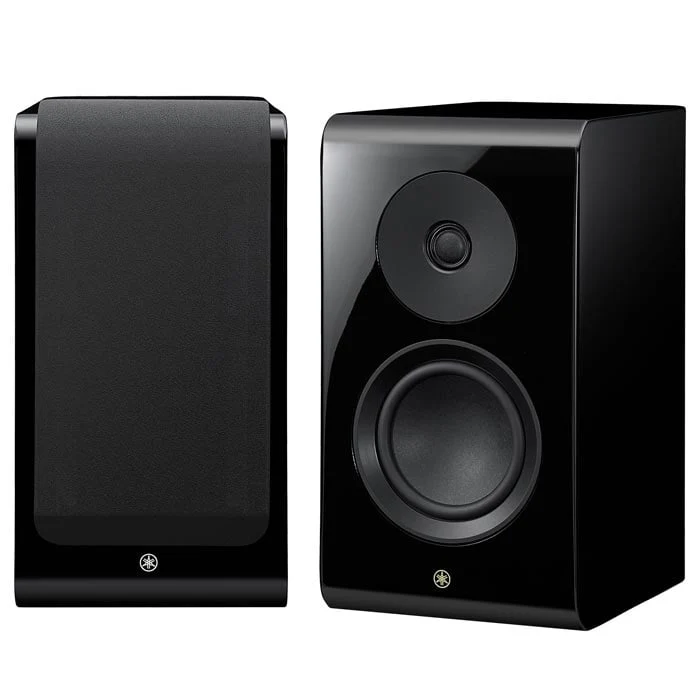

Yamaha NS-600A Bookshelf Speaker - Yamaha

MUSICALLY INSPIRED
Using our signature gloss finish, a technique traditionally reserved for our finest pianos, this speaker provides an aesthetic pleasure, whether you're immersed in its sound or simply admiring its presence.

Product Information:
The NS-600A is a compact 2-way speaker that provides faithful reproduction of all musical instruments and precise sound images.

• 2-way bookshelf speaker with 5 1/8" woofer
• A newly developed diaphragm made "Harmonious Diaphragm™" made of a blend of materials, including
• Zylon® and spruce, for true tonal balance
• Ideal cabinet construction, designed with vibration analysis technology cultivated in our crafting of musical instruments
• Yamaha-patented Acoustic Absorber optimized for the NS-600A
• Yamaha-patented R.S. (Resonance Suppression) Chamber for suppressing unwanted resonance
• Authentic piano finish adds to the luxurious joy of ownership
• High-quality parts for crossover circuitry, including audio capacitors made by Mundorf of Germany
• Solid brass speaker terminals for highly secure connection and luxurious feel

TRUE SOUND
Yamaha is the only audio brand in the world that manages every facet of sound, from its creation to the moment it graces your ears. Simply close your eyes, and you won't just hear the music - you'll experience the unparalleled sensation of being genuinely closer to the artist.

TONAL BALANCE
Every ear hears the world differently. Yamaha expresses sound as the artist intended. Reproducing sonic elements such as vocals and instruments at the right pitch requires both passion and precision. Yamaha accomplishes this through tonal balance, enriching harmonies and recreating musicality to help you hear sounds you couldn't hear before.

Specs:

• Type 2 way Bass-Reflex Type
• Woofers 5-1/8" cone type
• Tweeter 1-1/4" dome type
• Frequency Response 47 Hz-65 kHz (-10 dB), -100 kHz (-30 dB)
• Nominal Input Power 40 W
• Maximum Input Power 120 W
• Sensitivity 85.5 dB
• Crossover Frequencies 2.6 kHz
• Impedance 6 ohms (minimum 3.6 ohms)
• Dimensions (W x H x D) 8-1/8" x 15-1/8" x 13"
• Weight 21.8 lbs
• Accessories Front Grille x 1, Cushion x 4

PERFECTLY UNIFIED TONE
As a world-renowned music brand, Yamaha is relentlessly committed to accurately reproducing the sounds of instruments. In order to make this quest a reality, we created flagship speakers under the design concept of having consistent tone color throughout the entire frequency spectrum and applied unique technology to achieve it. For each and every one of its speaker units, the NS-600A employs the newly developed Harmonious Diaphragm™—made from a blend of ZYLON®, which has excellent sound velocity and optimal internal dissipation — and spruce, which is used in the soundboard of Yamaha grand pianos.

DYNAMICS
We pursue a sense of dynamics that express the contrast between stillness and motion in the music - allowing you to immerse yourself in the deep emotions in the music.

TOTAL MUSIC REPRODUCTION
Our patented Resonance Suppression chambers are mounted on the back of the tweeter in order to faithfully express even the finest nuances of musical instruments and voices. Two specially shaped tubes cancel unwanted resonance generated behind the diaphragm, revitalizing and maintaining the original sound.

FAITHFUL MUSICAL PRESENCE
Conventional speakers use a large amount of sound-absorbing material to eliminate standing waves inside the cabinet. However, this also removes much of the music's character. In the NS-600A, we’ve employed our patented Absorber tube to eliminate standing waves, while minimizing the amount of absorbing material, so that the original realism of music is reproduced with full energy and dynamism.

SOUND IMAGE
The position of the artist and instruments, along with the delicate nuances and atmosphere of the performance space, are stunningly reproduced. The resulting sound is so lifelike, you'll feel as though you were in the same room as the performance.

HIGHLY MUSICAL VIBRATION CONTROL
The principles for creating superb sound — understanding enclosure acoustics and pinpointing where to suppress vibrations — are virtually identical, whether crafting musical instruments or speakers. The NS-600A's cabinet construction incorporates state-of-the-art design technology while making full use of laser vibrometers, a tool essential in musical instrument research and development, as well as sophisticated Finite Element Method (FEM) analysis. The cross piece of the cabinet has also been reinforced. Experience a rich spatial sound that fully immerses you, making you feel as though you're right in the center of the performance.
