Bowers & Wilkins CCM 632 In-Ceiling Speaker With Integrated Back-box (pair)
Bowers & Wilkins CCM 632 In-Ceiling Speaker With Integrated Back-box (pair) - Bowers & Wilkins

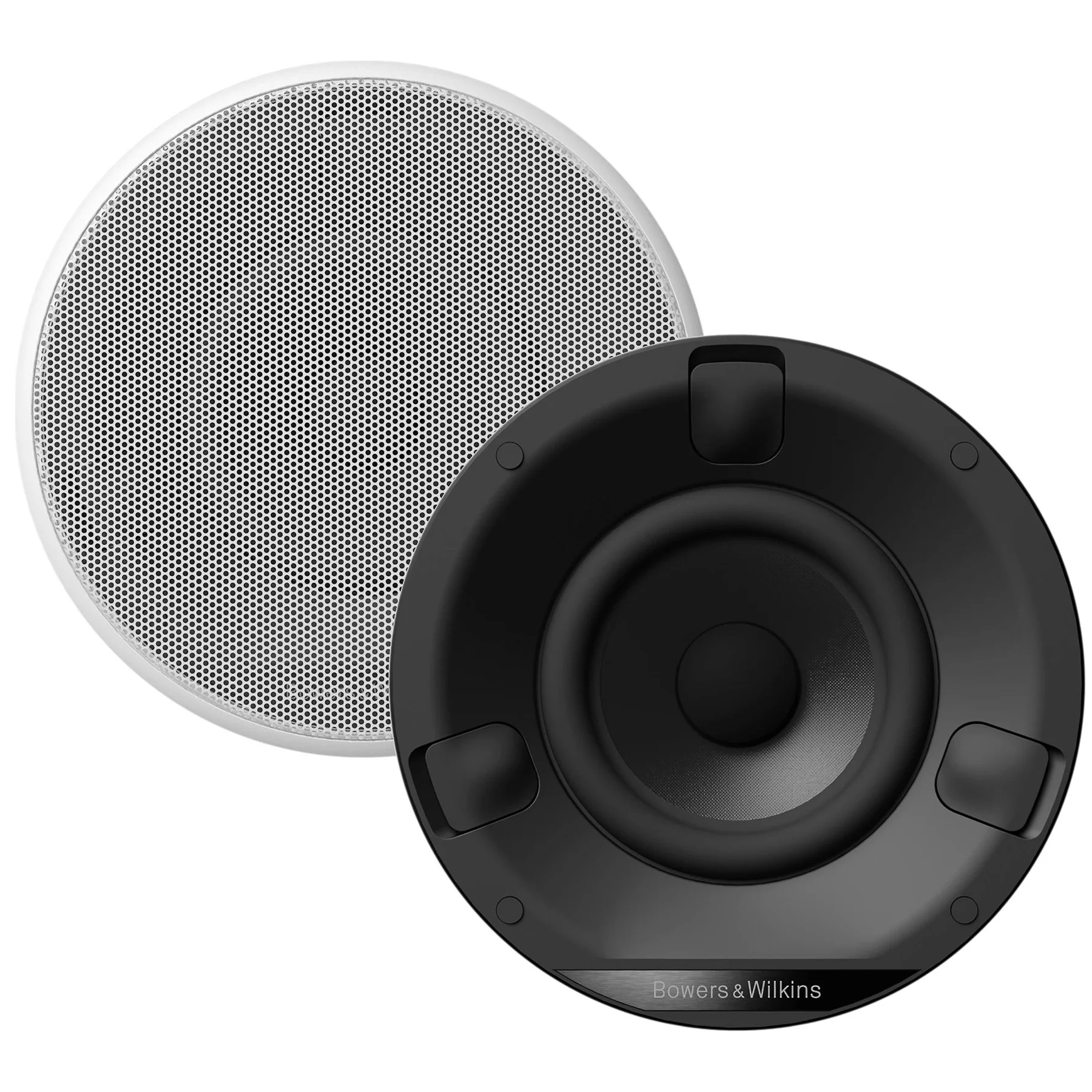

In-ceiling speakers, designed to squeeze into small spaces or be used in multiples for diffuse, background sound, are really difficult to get right. If the driver’s too small, there won’t be enough bass without adding a bulky subwoofer, but the common alternative is a 2-way where the tweeter sits in front of a small bass/midrange driver. The problem with these is the driver fires around the tweeter’s body, inevitably leading to coloration. The new Bowers & Wilkins CCM632 is a single 75mm (3inch) full-range driver with a beautifully well balanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150mm (6”) diameter space installed.
The CCM632 also features Bowers & Wilkins new and innovative ZipDogs™ fixing method. These make short work of installation and cope with almost any thickness of mounting panel.

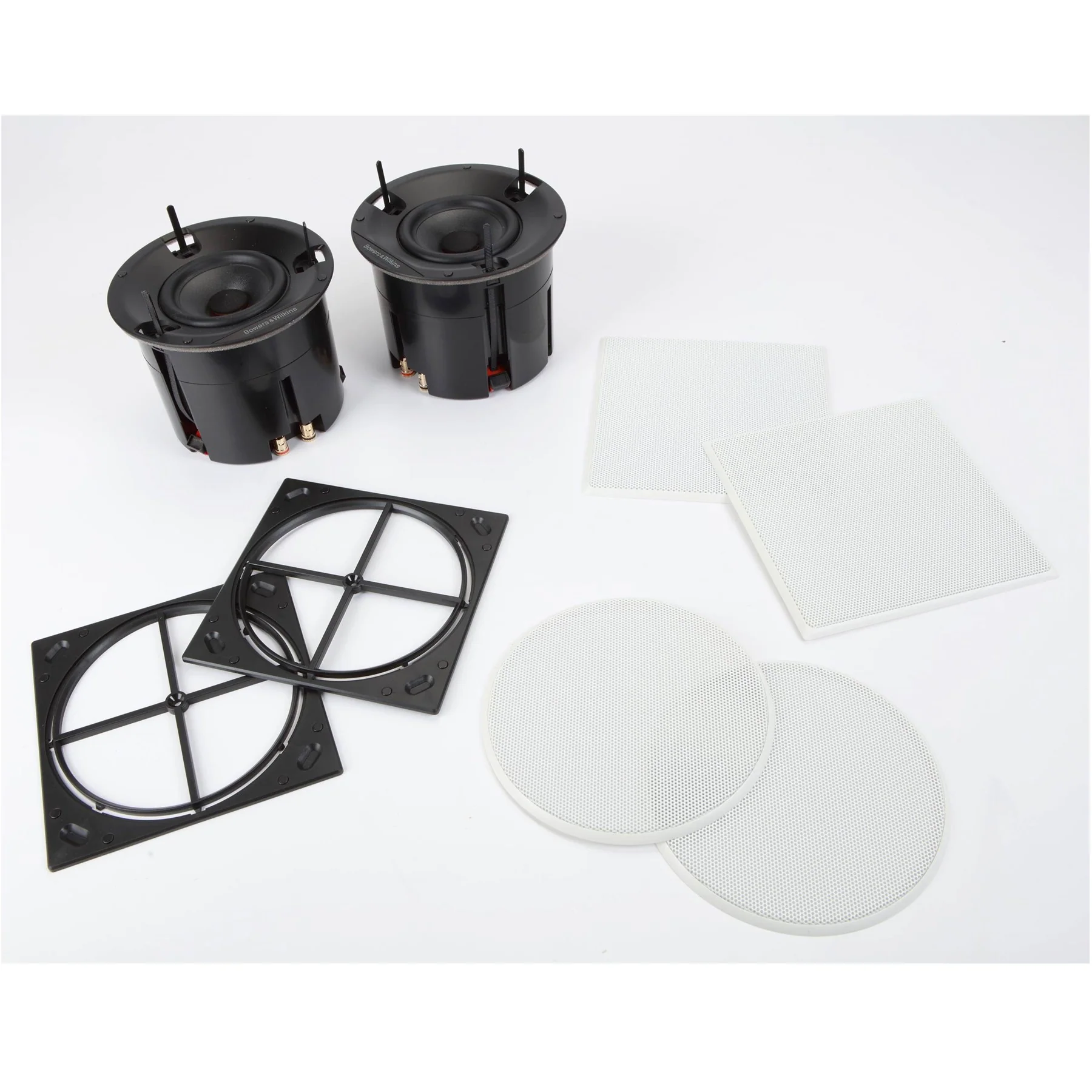

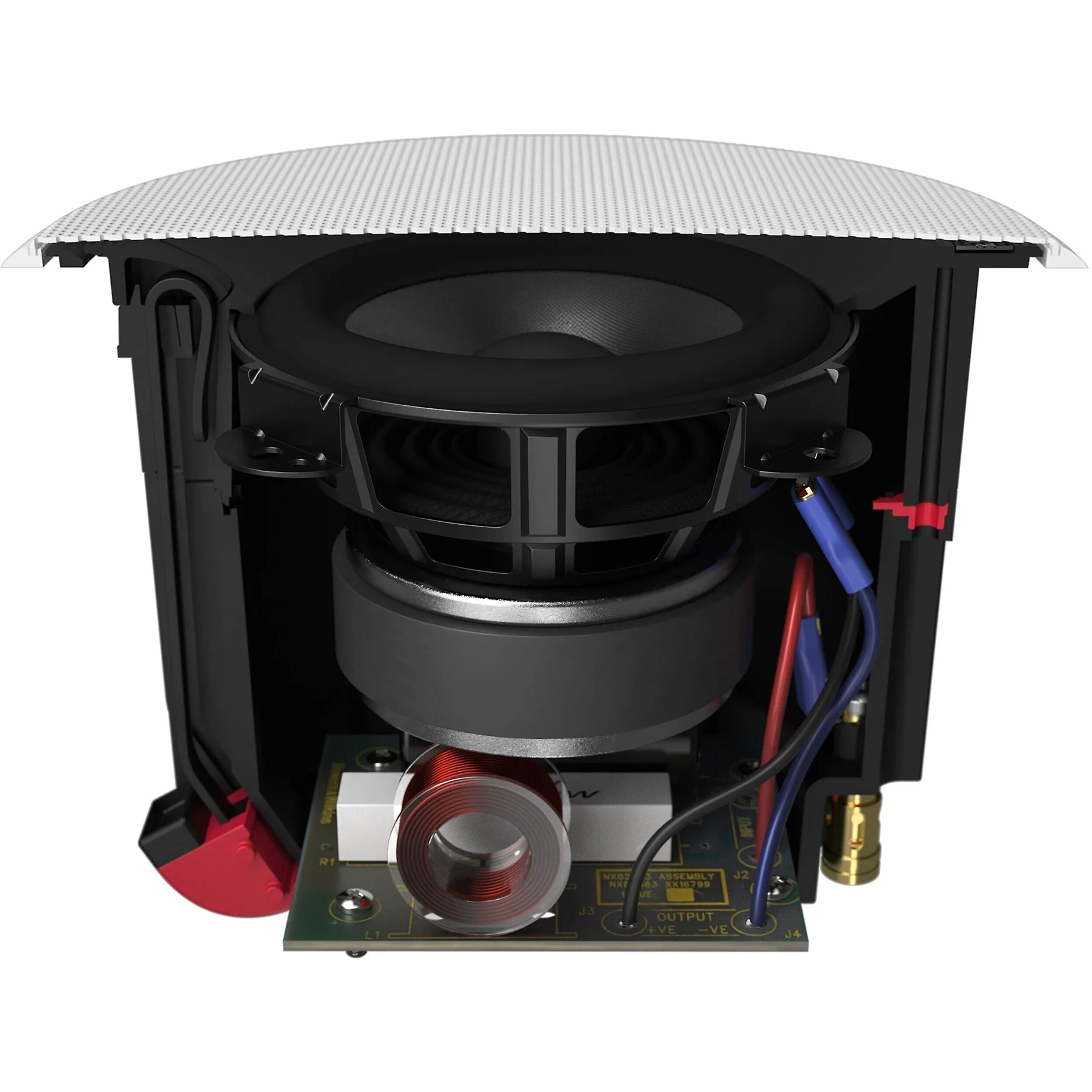

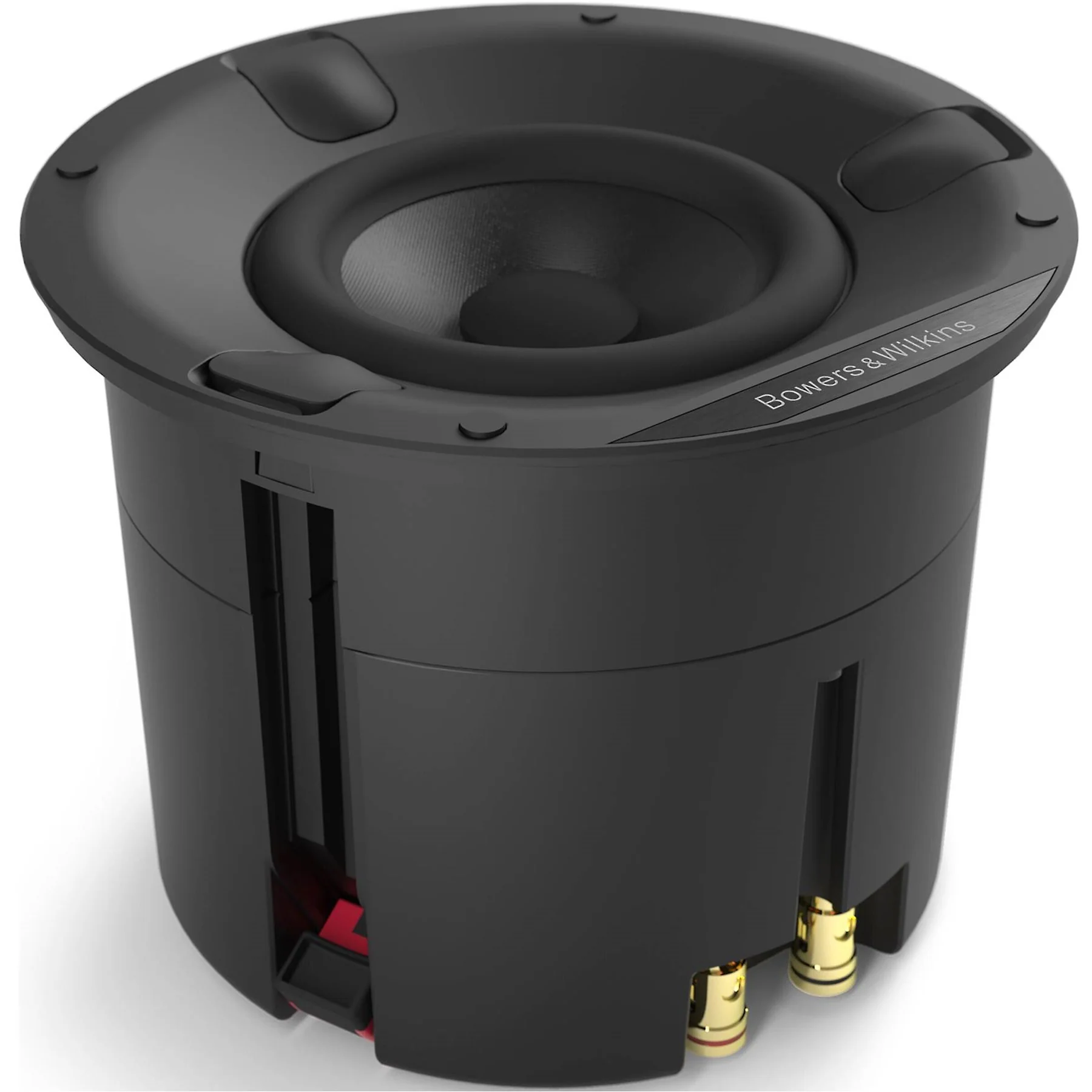

Each speaker comes with an integral enclosure to minimize acoustic bleed into adjoining spaces. Speakers are supplied in pairs, with each pack including round and square magnetically fixed, and fully customizable, grille/bezel assemblies
*Since these speakers use smaller drivers they lack deep bass, Audiolab recommends using a subwoofer to augment the low frequencies. There are in-wall subwoofers to keep the system stealthy. Call or chat with us for more details or recommendations
Technical Specifications:
- Description: Single driver in-ceiling system
- Drive Units: 3" full range paper cone
- Frequency range (-6dB): 100Hz – 17kHz
- Frequency response (+/-3dB): 112Hz - 16kHz
- Recommended Amplifier Power: 10W – 60W
- Sensitivity: 84dB (2.83V, 1m)
- Nominal Impedance: 8Ω (5Ω minimum)
- Frame diameter: 5.8"
- Cut-out diameter 4.75"
- Depth behind surface: 4"
- Protrusion: 0.22"
- Optional pre-mount Kit: PMK C3
- Back Box: Integral

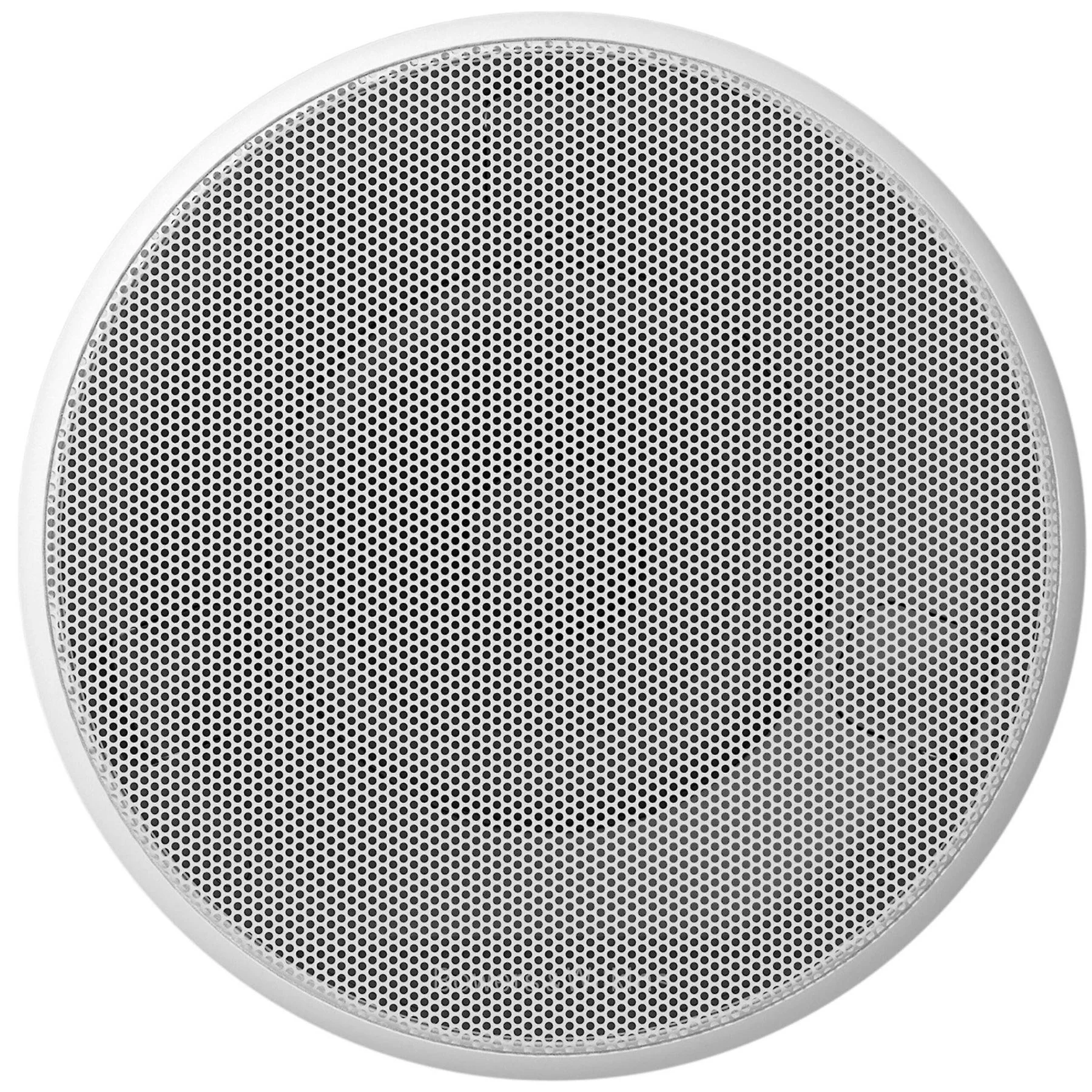

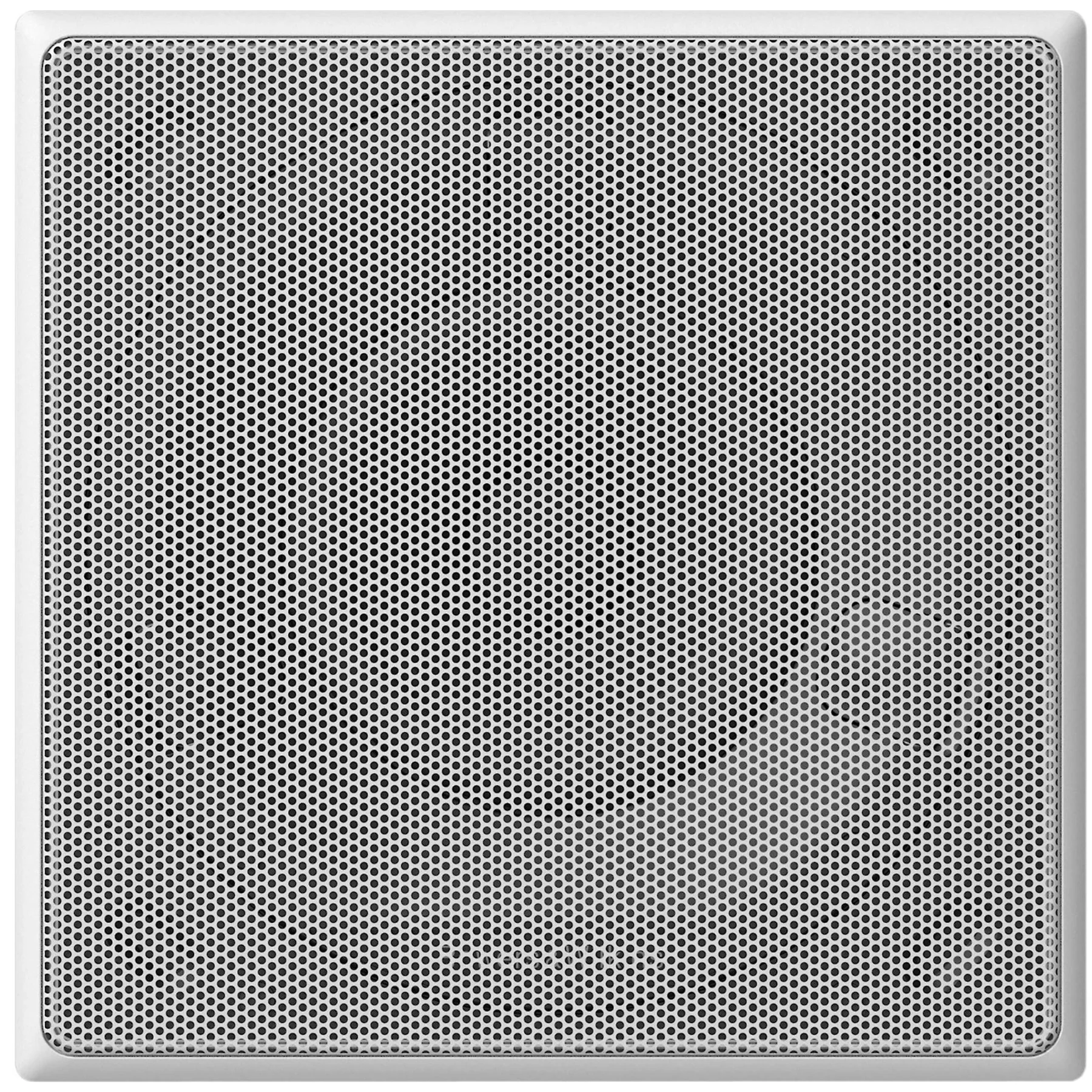

- Grille: Square and round grilles included
